DEWALT XTREME 12V MAX Drill Review (DCD701F2): The Compact Drill That Actually Has Power
Quick Verdict
The DEWALT XTREME 12V MAX (DCD701F2) is the right drill for anyone doing home repairs, finish work, or tight-space jobs who doesn’t need the bulk of an 18V or 20V platform. At $159 you get the drill, two 2.0Ah batteries, a charger, belt clip, and tool bag — a complete kit. The limitation is clear upfront: at 12V, this is not a heavy-construction tool. If you’re running self-drilling screws into steel studs all day, get a 20V. If you’re doing cabinet installs, outlet boxes, pilot holes, and general home projects, this thing punches well above its size.
Who It’s For
You own a home. Things break, and you like fixing them yourself rather than scheduling someone for a Tuesday window between 8 and 3. You’re not a tradesman who bills by the job — you’re the guy who mounts TVs, assembles furniture, hangs shelves, and occasionally builds something in the garage. You want a drill that doesn’t feel like overkill for those tasks but won’t quit halfway through a project.
You also work in tight spots. Kitchen cabinet installs, electrical box work, crawl spaces, inside wall cavities. A full-size 20V drill simply doesn’t fit in some of these places, and a right-angle attachment is more hassle than it’s worth.
Who It’s Not For
If your projects involve heavy framing, mixing mortar, or driving 3-inch deck screws through treated lumber all afternoon — this is the wrong tool. The 12V platform is genuinely capable for its class, but torque-intensive construction work belongs on a 20V or higher. Also: if you’re already deep in the DEWALT 20V ecosystem with multiple batteries and tools, adding a separate 12V battery platform has real inconvenience costs. The 12V and 20V batteries are not interchangeable.
What I Liked
It’s Genuinely Short — and That Matters More Than You’d Think
The DCD701 is 5.97 inches from front to back. That’s small. For comparison, a standard 20V compact drill is typically around 7 inches. That 1-inch-plus difference sounds minor until you’re trying to drill a pilot hole in the back corner of a cabinet box or reach into an electrical panel. At that point, it’s the difference between fitting and not fitting.
At nearly 20% shorter than previous-generation 12V models, the DCD701 eliminates the need for right-angle attachments in most common residential tight-spot situations. Because the motor sits closer to the hand, the weight-to-fatigue ratio improves noticeably — you can use this drill for extended work without the wrist strain that comes from heavier 20V tools.
At 1.9 lbs (tool only), it’s light enough that you stop thinking about holding it, which matters on long install days.
250 UWO Is Respectable at This Voltage
The brushless DCD701 delivers 250 Unit Watts Out — a 32% jump over the older brushed DCD710 model — with a no-load speed of 425 RPM in low gear and 1,500 RPM at the top end.
In independent testing, the DCD701 crushed a hole saw test, drilling through completely in 50 seconds — competitive with some higher-voltage models. It produced one of the better performances seen out of any 12V drill in side-by-side comparisons.
That’s real-world data, not DEWALT marketing. For the use cases this drill is built for — pilot holes, cabinetry, light framing, finish carpentry — 250 UWO is more than enough.
15 Clutch Settings + 2-Speed Gives You Actual Control
This is where compact drills often cut corners, and DEWALT didn’t here. The 15 clutch settings let you dial in torque precisely — useful when you’re driving screws into soft wood trim and don’t want to strip the head or blow through the surface. The 2-speed transmission (low for torque, high for speed) handles the difference between slow driving into hardwood and fast drilling through drywall. The 3/8-inch ratcheting chuck accepts a wide range of bits and locks down solid.
The Kit Is Complete
At $159, the DCD701F2 includes two 2.0Ah batteries with charge indicators, the charger (which also charges 20V MAX batteries — useful if you have any DEWALT 20V tools), a belt clip, and a soft tool bag. DEWALT includes the charger with the batteries. That’s worth noting because plenty of brands sell kits and make you source the charger separately.
The LED foot light is positioned to actually illuminate your work area rather than pointing at the ceiling. Small detail, useful in practice.
What I Didn’t Like
It’s a 12V Tool — Know What That Means
The 32% power increase over the previous model is real. But that comparison is 12V against older 12V. Against a 20V brushless drill, this tool has less torque. If you occasionally need to drive long screws into dense material or run a 2-inch hole saw through solid hardwood repeatedly, you’ll notice the difference. The DCD701 handled hole saw tests well in independent reviews, but sustained heavy-load work isn’t what this drill is optimized for.
Separate Battery Platform Is a Real Inconvenience
Some users note the battery release mechanism is different from 20V DEWALT models, requiring a brief adjustment period. More importantly: if you’re already running DEWALT 20V MAX batteries on a circular saw, an impact driver, or a jigsaw, these 12V batteries don’t cross over. You’re maintaining two separate battery platforms. That’s manageable if the compact size genuinely matters to your work. It’s annoying if you bought this expecting ecosystem compatibility.
The Case Is Basic
The included soft bag is fine for transport but doesn’t organize anything. You’ll be digging around for bits and the belt clip if you’re not careful. A molded hard case at this price point would have been better.
How It Compares
DEWALT DCD701F2 vs. Milwaukee M12 Fuel (2504-22)
The Milwaukee M12 Fuel is the serious competition in this category. It runs on Milwaukee’s M12 platform, which is one of the most established compact battery ecosystems in the market. Torque output is comparable to the DEWALT at this voltage class, and Milwaukee’s build quality is excellent.
Price difference: the M12 Fuel kit typically runs $20–$40 more. If you’re already in the Milwaukee ecosystem, the M12 Fuel is the obvious pick — battery compatibility across your tools justifies the premium. If you’re starting fresh or already have any DEWALT 20V tools (the 20V charger compatibility is a partial bridge), the DCD701F2 is the better value entry point.
DEWALT DCD701F2 vs. DEWALT 20V MAX Compact (DCD777)
This is the honest question to ask before buying: do you actually need 12V, or do you just want a smaller drill? The DCD777 is a 20V compact brushless drill that isn’t dramatically larger than the DCD701, costs similarly, and shares batteries with the rest of the DEWALT 20V ecosystem. If tight-space access isn’t your main reason for wanting a compact drill, the 20V version makes more long-term sense.
The 12V wins only on size and weight. If those are real factors in your work, the DCD701F2 is the right call. If they’re not, buy the 20V.
Verdict
At $159 with two batteries, a charger, and a bag included, the DEWALT XTREME 12V MAX DCD701F2 is worth buying if: you regularly work in tight spaces, you want a lightweight drill for finish work and home projects, and you don’t need the drill to handle sustained heavy-load applications.
Skip it if: you’re already in the DEWALT 20V ecosystem and battery portability matters, you do construction-grade work that needs real torque, or you just want a smaller drill without a specific reason the 12V platform is better for your situation.
For home project use — the guy mounting cabinets on a Saturday, running outlets in a remodel, or keeping one drill for general repairs — this is a well-priced, well-built tool that won’t frustrate you.
FAQ
Is the DEWALT XTREME 12V MAX strong enough for home use? Yes, for the vast majority of home projects. Pilot holes, driving screws into wood, hanging shelves, assembling furniture, cabinet installs — the 250 UWO output handles all of it without issue. Where it shows limits is sustained heavy-load work: framing, long screws into dense material repeatedly, or 2-inch hole saws through hardwood for extended sessions.
Are the 12V batteries compatible with other DEWALT tools? No — the 12V MAX batteries are not compatible with DEWALT’s 20V MAX platform. The charger included in the kit (DCB112) charges both 12V and 20V MAX batteries, which is a useful crossover. But the battery packs themselves are platform-specific.
How does the DCD701F2 compare to the older DCD710? The DCD701F2 (brushless) vs. DCD710 (brushed): the newer model is 20% shorter, about 5 ounces lighter, and delivers 32% more power. If you’re choosing between them, the DCD701F2 is the clear upgrade at a comparable price.
Is $159 a good price for this kit? It’s fair. Two batteries, charger, belt clip, and bag at $159 is a complete kit — you’re not buying extras to get started. If you see it under $130, that’s a strong deal. Over $170, look at the 20V compact alternatives first.

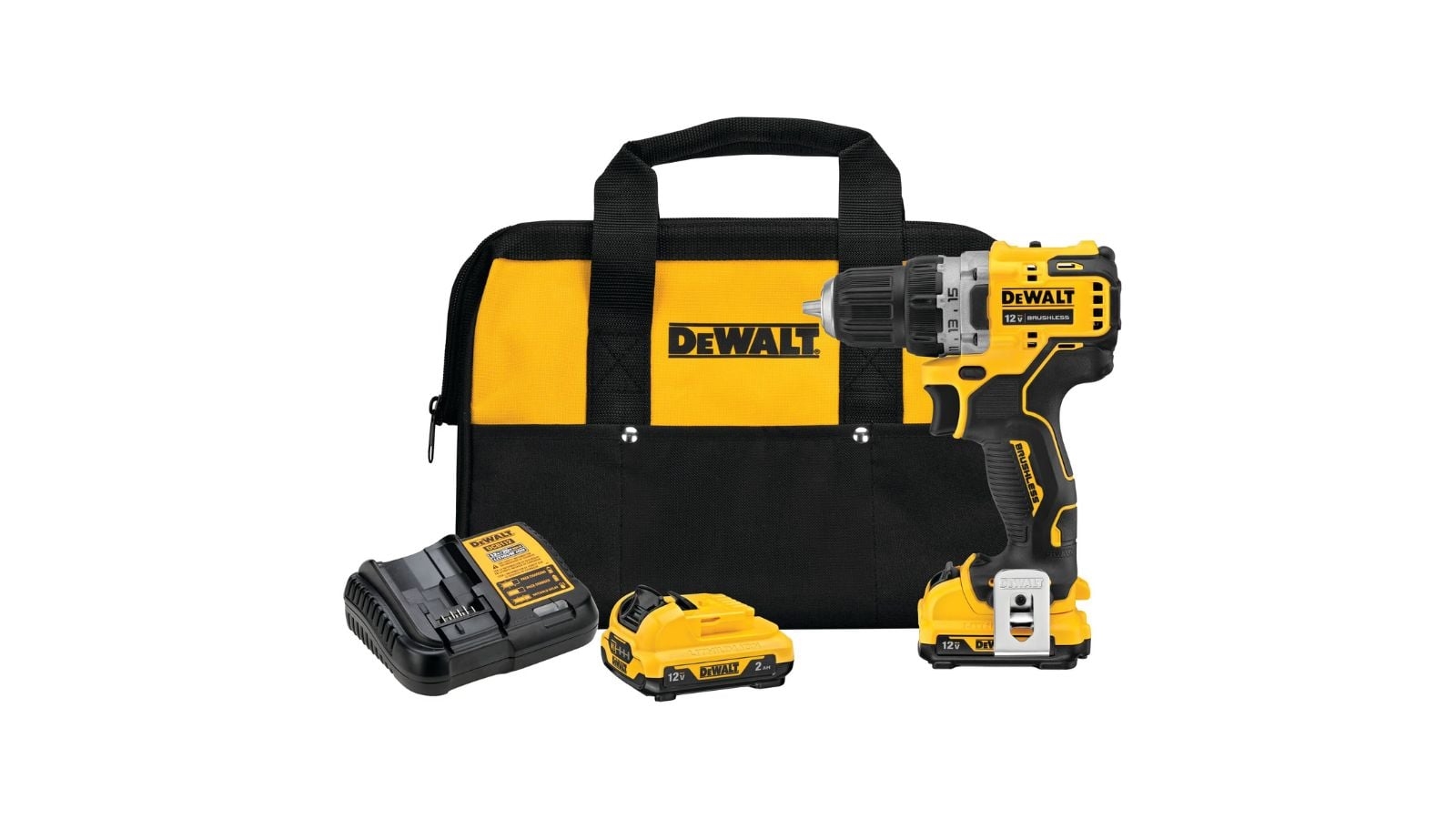

What’s included in the DCD701F2 kit? One DCD701B drill/driver, two DCB122 12V MAX 2.0Ah batteries with charge indicators, one DCB112 charger (works on 12V and 20V MAX), belt clip, and soft tool bag.
